VMC1370 High Precision 5 Axis CNC Milling Machine with Direct Drive 12000 rpm and 24 Tool Capacity Vertical Machining Center
|
VMC1370 High Precision 5 Axis CNC Milling Machine with Direct Drive 12000 rpm and 24 Tool Capacity Vertical Machining Center
| 起源の場所 | 中国 |
| ブランド名 | didaINT |
| 証明 | ISO9001 |
| モデル番号 | vmc1370 |
製品詳細
メインモーター出力:
15 kW
主軸速度範囲:
ダイレクトドライブ 12000rpm
ツールの数:
24
パワータイプ:
電気
作業オブジェクト:
ハードウェア
レイアウト:
垂直
製品タイプ:
真新しい
在庫状況:
はい
国境を越えた輸出供給:
はい
ハイライト:
High Precision 5 Axis CNC Milling Machine
,Direct Drive 12000 rpm Vertical Machining Center
,24 Tool Capacity CNC Machining Center
支払及び船積みの言葉
最小注文数量
1
価格
30000usd
パッケージの詳細
木製パッケージ
受渡し時間
3-7days
支払条件
T/T、ウェスタンユニオン
供給の能力
1000単位/月
製品の説明

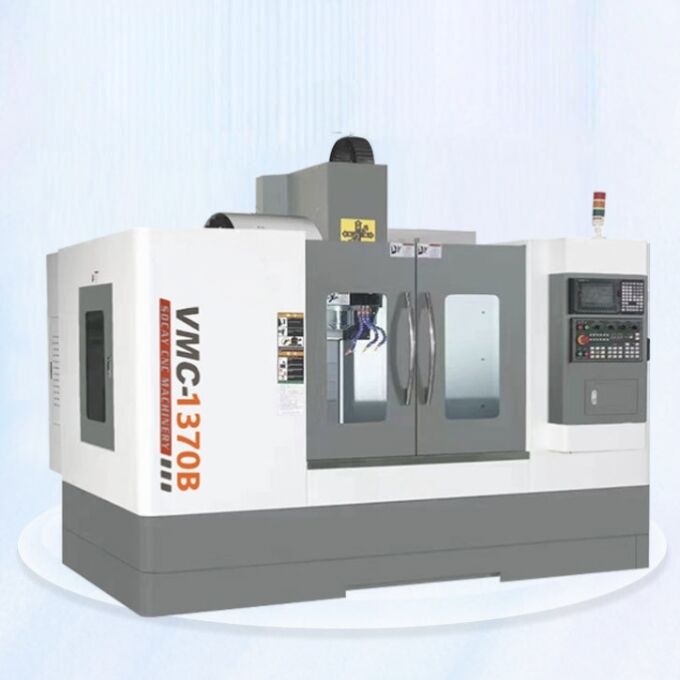

VMC1370 5 Axis CNC Milling Machine High Precision Vertical Machining Center
The VMC-1370B 5-axis CNC machining center represents our flagship product, integrating advanced technology with robust performance capabilities. Engineered with roller linear guides and a two-line-one-hard rail design, this machine excels in heavy cutting applications while maintaining high-precision finishing standards. Suitable for diverse industrial applications, it delivers exceptional stability, efficiency, and accuracy to meet complex machining requirements.
Mechanical Specifications
| Category | Specification | VMC-1370B |
|---|---|---|
| Worktable | Worktable Size | 1500 × 700 mm |
| Processing Range | 1300 × 700 mm | |
| T-Slot | 5-18×145 mm | |
| Maximum Load Capacity | 1000 kg | |
| Travel | Distance from Spindle Center to Machine Body End Face | 750 mm |
| X/Y/Z Axis Travel | 1300/700/650 mm | |
| Distance from Spindle Nose to Worktable Surface | 110-760 mm | |
| Spindle | Spindle Taper | BT-40 |
| Spindle Speed | Direct Drive 12000 rpm | |
| Rapid Traverse | 3-Axis Cutting Feed Rate | 1-10000 mm/min |
| X/Y/Z Axis Rapid Traverse Rate | 36/36/36 m/min | |
| Screw & Guide Rail Specifications | 3-Axis Screw (Enlarged Spec) | C3 Grade 40-12 |
| Y-Axis Guide Rail (Enlarged Spec) | P Grade 45mm Roller | |
| Z-Axis Guide Rail | Rectangular Hard Rail | |
| X-Axis Guide Rail (Enlarged Spec) | P Grade 45mm Roller | |
| Tool Magazine | Tool Capacity | 24 T |
| Tool Change Speed | 2 Seconds | |
| Max Diameter × Length of Adjacent Tools | Ø80×300 mm | |
| Maximum Tool Weight | 8 kg | |
| Tool Holder Spec | BT-40 | |
| Drive Motor | Spindle Drive Motor | DG11/15 KW |
| X/Y/Z Axis Drive Motor | 3.0/3.0/3.0 KW | |
| Cutting Water Motor | 960 W | |
| Electric Motor Spec | 750 W | |
| Precision | Standard Accessories | Chip Collection Box |
| Positioning Accuracy | 0.005/300 | |
| Repeatability | ±0.003 | |
| General Specifications | Power Supply | 3-Phase / 380V / 30KVA |
| Machine Dimensions (L×W×H) | 3800×2900×2900 mm | |
| Total Weight | 7800 kg |
Factory Presentation
Frequently Asked Questions
What are the main advantages of the 5-axis feature on the VMC1370?
The simultaneous 5-axis movement enables machining of complex geometries in a single setup, reducing lead time and improving accuracy by minimizing repositioning errors. This capability allows for machining undercuts and deep cavities that are impossible on 3-axis mills.
What control systems are available, and which one do you recommend?
We offer industry-leading systems including Siemens 828D and Fanuc 0i-MF. For complex 5-axis programming and high-speed machining, Siemens is often recommended for its advanced software capabilities. For robust reliability and widespread familiarity, Fanuc is an excellent choice. We provide personalized recommendations based on your specific operational requirements.
Can this machine handle tough materials like titanium or stainless steel?
Yes, the VMC1370 is engineered with a rigid box-in-box structure and high-torque integral spindle, making it fully capable of efficiently and precisely machining tough alloys including titanium, Inconel, and hardened steels.
Do you provide training and installation support?
Absolutely. We provide comprehensive installation, commissioning, and operator/programmer training with every machine purchase. Our commitment extends to extensive after-sales support including technical assistance and spare parts supply.
What is the typical delivery and installation timeline?
Standard delivery time is 1 week upon order confirmation. Installation and commissioning typically require 3 days at your facility, depending on site readiness. Our team collaborates with you to ensure seamless integration into your manufacturing operations.
